MAINTENANCE FREE PLATE EARTHING

copper earthing plate MANUFACTURERS IN INDIA

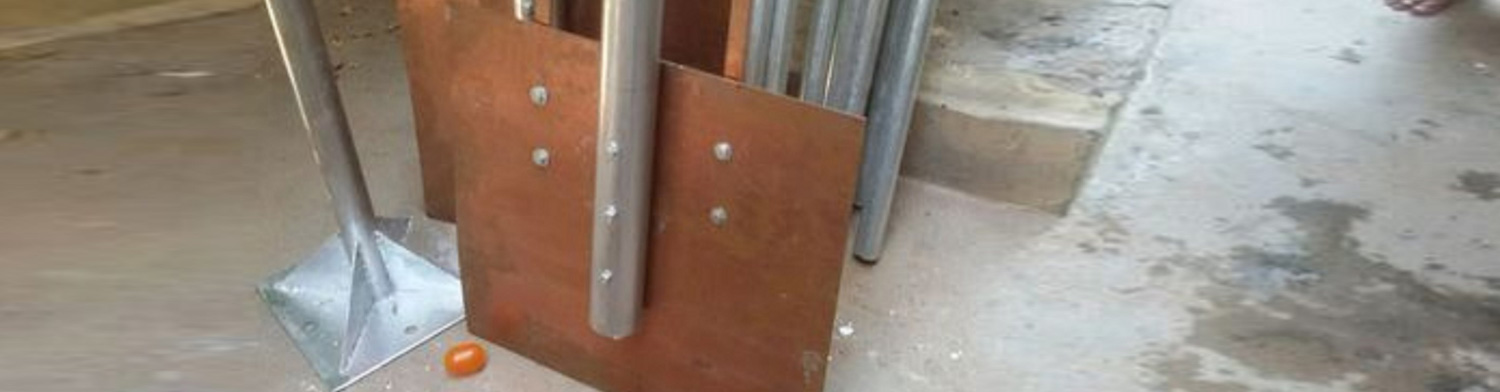

copper plate earthing

Looking for a trusted supplier of copper plate earthing solutions? Genius Protection System Private Limited offers high-quality systems that secure your electrical setup and protect lives and equipment. Ensure peace of mind with our reliable earthing copper plate. Copper earthing plate is an essential component of any electrical system. It plays a critical role in protecting people and equipment from electrical hazards such as electric shocks and fires. Earthing Plate involves connecting the electrical system to the ground to create a path for the current to flow. This helps to stabilize voltage, reduce the risk of electrical shock, and prevent damage to sensitive equipment.

If you're looking for high-quality copper earthing plate products, GPS India is your go-to supplier. We are a leading provider of plate earthing solutions, offering a wide range of products to meet your needs. From residential to industrial applications, we have the experience and expertise to deliver the best solutions for your electrical needs.

SEND ENQUIRY


PLATE EARTHING CHART

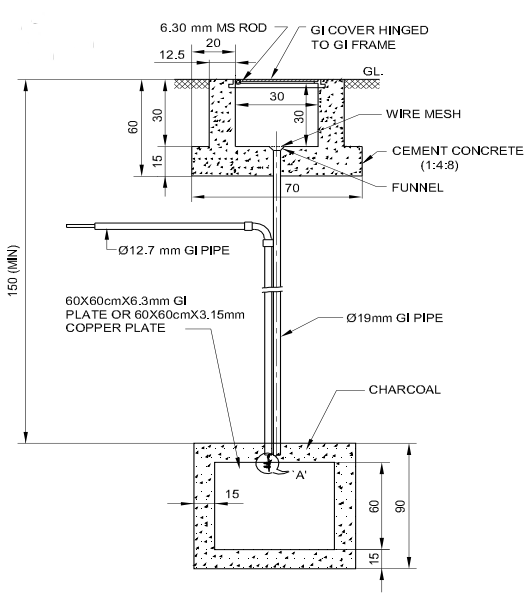

plate earthing diagram

EXPLANATION PLATE EARTHING DRAWING

Plate Electrode Composition:

➔The plate earthing diagram features a plate electrode made of either galvanized iron or steel (minimum thickness: 6.3 mm) or copper (minimum thickness: 3.15 mm).
➔The dimensions of the plate in the diagram should be at least 60 cm by 60 cm.

Earth Burial and Composition:

➔In the plate earthing diagram, the plate is buried in the ground.
➔It is surrounded by alternating layers of charcoal and salt.

Function of Charcoal Layer:

➔As depicted in the plate earthing diagram, the charcoal layer serves to retain moisture.
➔This moisture retention aids in maintaining a low earth resistance.

Connection Strip:

➔The plate earthing diagram includes a galvanized iron strip connected to the plate.
➔This strip extends above the ground.

Purpose of Connection Strip:

➔As illustrated in the plate earthing diagram, the strip facilitates the connection of the plate to the electrical system that is being earthed.

Watering Pipe:

➔A pipe is shown in the plate earthing diagram.
➔It is used for watering the earth around the plate.

Role of Watering Pipe:

➔According to the plate earthing diagram, the pipe helps maintain moisture levels around the plate, ensuring effective earthing.

Inspection Chamber:

➔The plate earthing diagram includes an inspection chamber built around the earth pit.

Function of Inspection Chamber:

➔As depicted in the plate earthing diagram, the chamber allows for regular inspection and maintenance of the earthing system.

Why Choose GPS India?

There are several reasons why you should choose GPS India as your supplier of plate earthing products. Here are just a few:

Experience and expertise: They have been in the business for many years and have built a reputation for providing high-quality products and exceptional customer service. They have a team of experts who can help you find the right solution for your needs.

Superior products: They use only the highest quality materials to manufacture their copper earthing plate products. This makes sure that their products are reliable and durable, and provide the best performance possible.

Customized solutions: They understand that every electrical system is unique. That's why they offer customized plate earthing solutions to meet your specific needs. They will work with you to design a solution that meets your requirements and provides the best performance.

Competitive pricing: They offer competitive pricing for their earthing products. They understand the importance of keeping costs down while still delivering high-quality products and excellent customer service.

GPS India's copper plate earthing Products

We offer a wide range of copper earthing products to meet your needs. Here are some of their most popular products:

Copper Plate Earthing: These plates are made from high-quality copper and provide excellent conductivity. They are available in a variety of sizes and thicknesses to meet your needs.

Copper Earthing Strip: These strips are designed to provide a low-impedance path to the ground. They are available in different sizes and lengths to meet your specific requirements.

Copper Earthing Wire: This wire is made from high-quality copper and is available in different sizes and lengths to meet your needs.

Maintenance-Free Earthing Electrode: This is designed to provide a long-lasting and reliable solution for your earthing needs. It requires minimal maintenance and offers excellent performance.

Importance of Earthing Copper Plate

It is crucial for the safety of electrical equipment and human lives. It helps to protect against electrical shock and damage caused by lightning strikes. It also confirms the proper functioning of electrical equipment by providing a path for the fault current to flow to the ground. Without proper earthing, electrical equipment can malfunction, resulting in loss of property and human lives.

Benefits of Earthing Copper Plate

Electrical Safety
Equipment Protection
Enhanced System Performance
Lightning Protection
Reduction of Electrical Noise
Fire Prevention
Equipment Longevity
Personal Safety
Compliance with Electrical Codes
Cost Savings

Conclusion

Genius Protection System Private Limited is your trusted high-quality copper plate earthing supplier in India. Enhance electrical safety with our reliable products and ensure efficient grounding for your electrical installations.
